Geometry - Angles and degrees
Lesson 1.

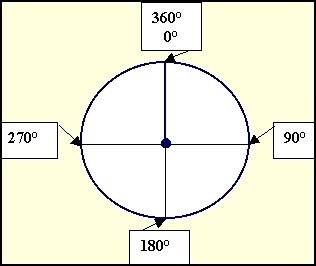

Angles are measured in degrees. A
circle (a complete rotation) is 360 degrees.
Look at 1/4 of a circle.
Some common angles
|
|

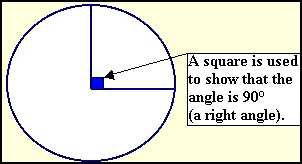

A 90° angle is called a right angle. |
|
|
An angle between 90° and 180° is called an obtuse angle. |
|
|
An angle that is less than 90° is called an acute angle. |
More about angles, degrees and similar figures
|
|
Half a circle is 180 degrees (a straight angle). |
|
|
Supplementary angles are angles that have an arm in common and have a sum of 180 degrees. The green and blue angles have a sum of 180 degrees. |
Example:
How many degrees is angle X?
|
Calculate: |
 |
Similar figures
Figures with exactly the same shape are similar figures. Corresponding angles in similar triangles are equal in size. This rule applies to all polygons.
|
|
|
Similar figures |
|
|
|
Similar figures |
|
|
|
Similar figures |
 |
|
not similar |
|
|
|
not similar |
Sums of angles
|
|
 |
In a triangle, the angles add up to 180°. |
|
|
 |
In a rectangle, the angles add up to 360°. |
|
|
 |
In any quadrilateral, the angles add up to 360°. This diagram shows a parallelogram |
Practice these methods and try Quiz 1 on Geometry. Remember to use the Checklist to keep track of your work.
